Door Hinges



Architectural Hinge



Stainless Steel 304

Button Tipped - Plain


Available in fixed and loose pin.

Finish
Satin Stainless
Polished Stainless

Button Tipped - Plain

100x100x2.5mm

Available in fixed and loose pin.

Finish
Satin Stainless
Polished Stainless

Button Tipped - Plain

100x75x1.5mm

Available in fixed and loose pin.

Finish
Satin Stainless
Polished Stainless

Button Tipped - Plain

85x60x2.0mm

Available in fixed and loose pin.

Finish
Satin Stainless
Polished Stainless

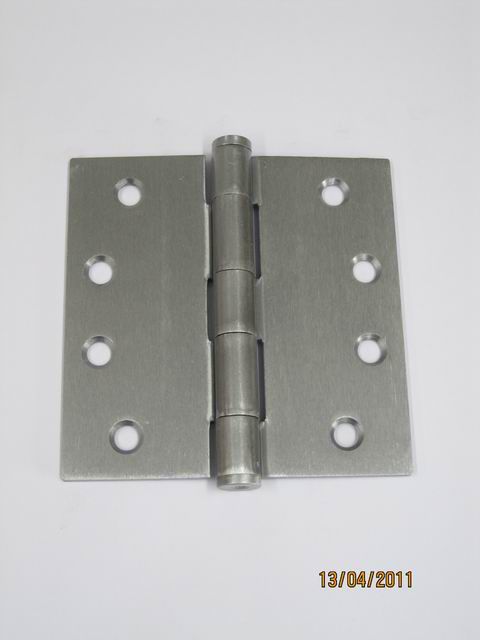

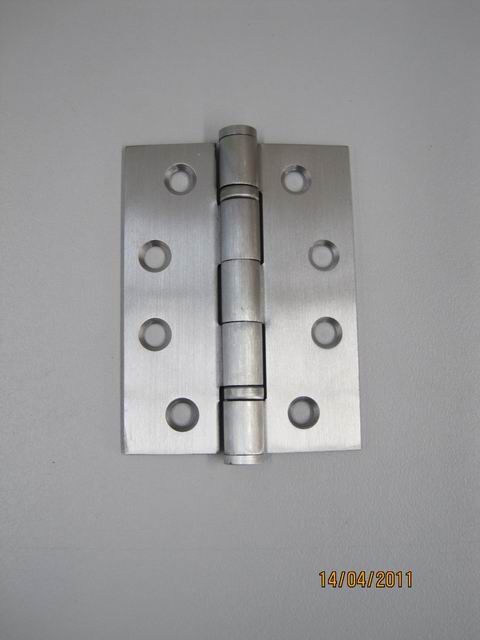

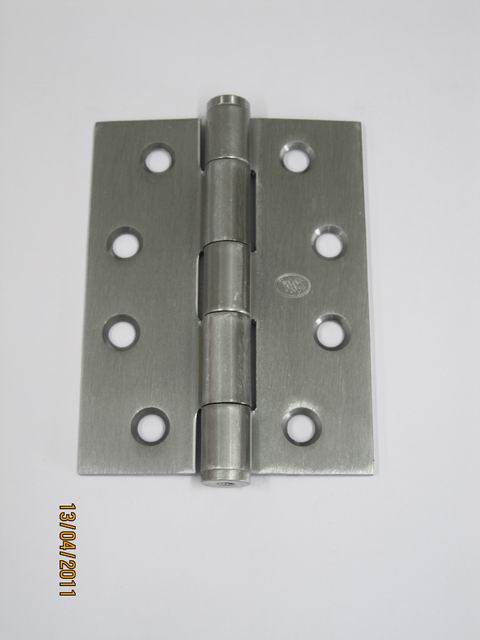

Button Tipped - Ball Bearing

100x75x2.5mm

Available in fixed and loose pin.

Finish
Satin Stainless
Polished Stainless

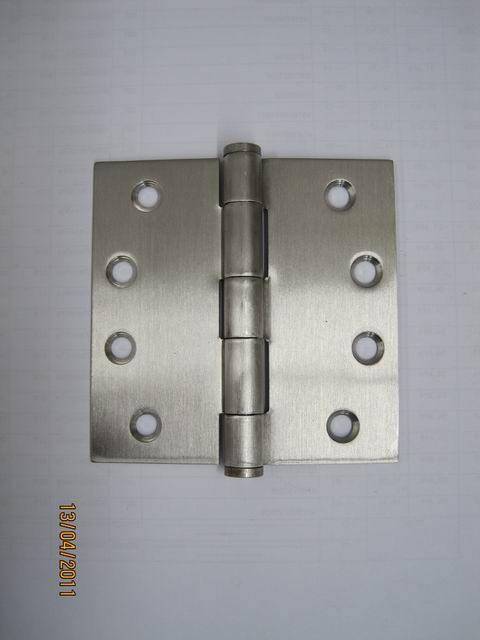

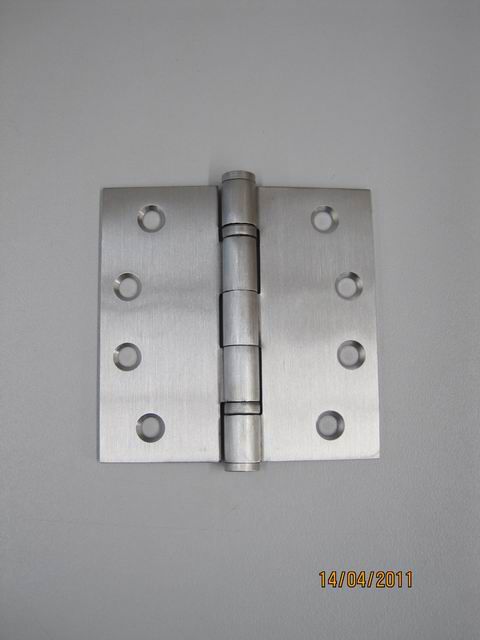

Button Tipped - Ball Bearing

100x100x2.5mm

Available in fixed and loose pin.

Finish
Satin Stainless

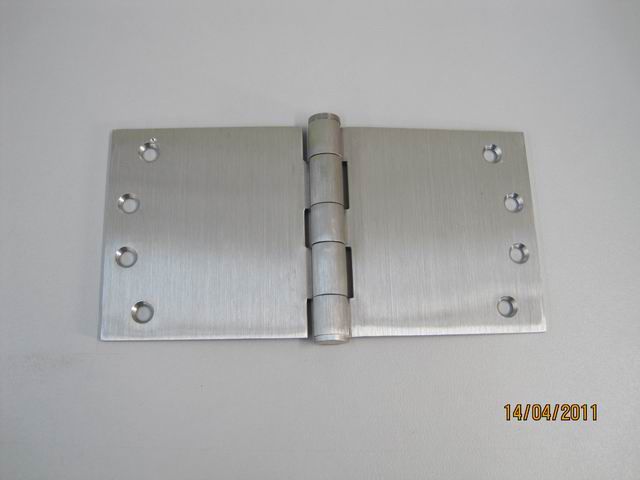

Button Tipped - Wide Throw


Available in fixed pin.

Finish
Satin Stainless
Polished Stainless

Size
100x125x3.5mm
100x125x3.5mm
100x150x3.5mm
100x175x3.5mm
100x200x3.5mm

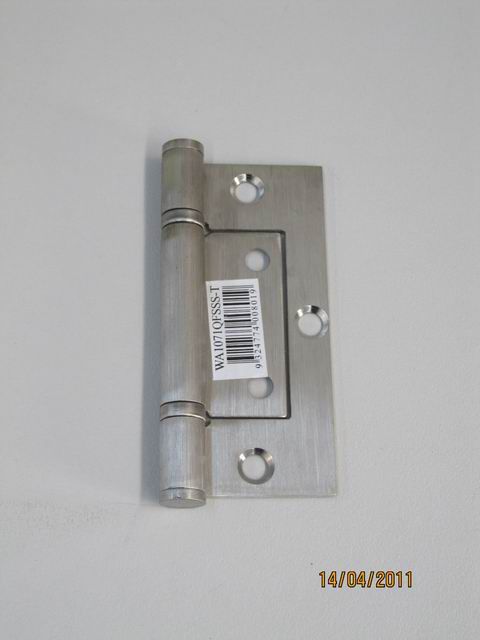

Ball Bearing Quick Fix


Available for timber and metal doors.

Finish
Satin Stainless

Size
100x71x2.5mm

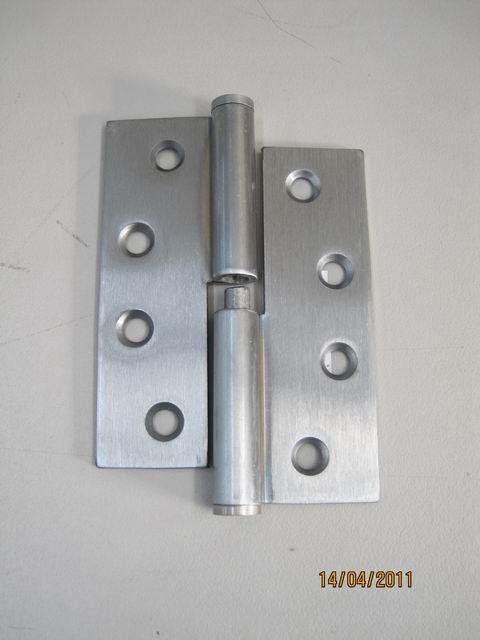

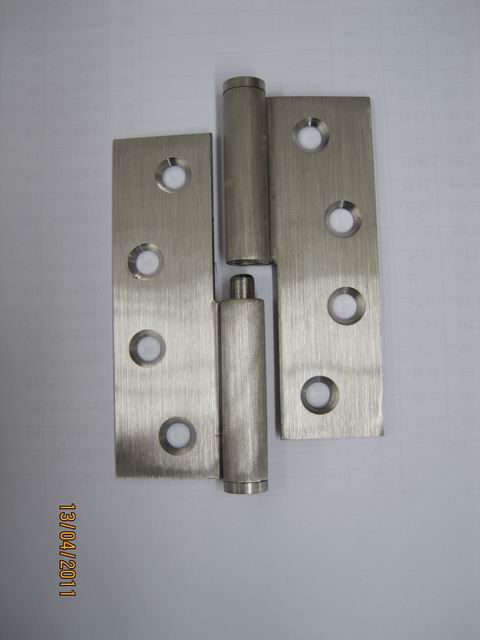

Lift Off Hinge

100x75x2.5mm

Finish
Satin Stainless
Polished Stainless

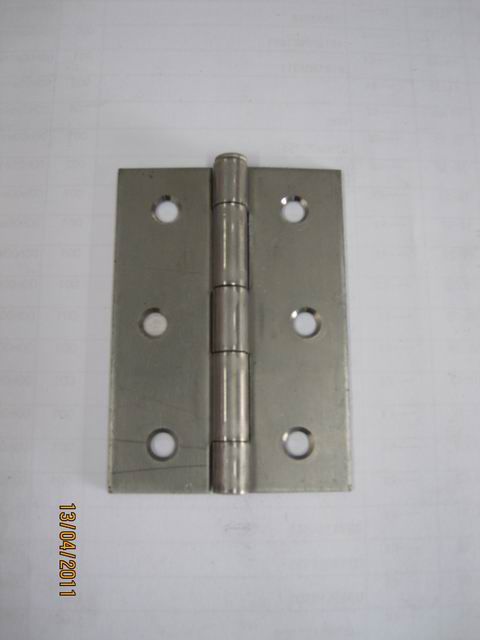

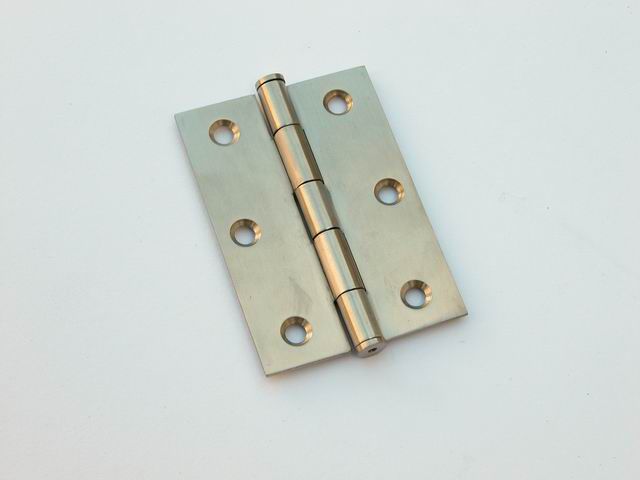

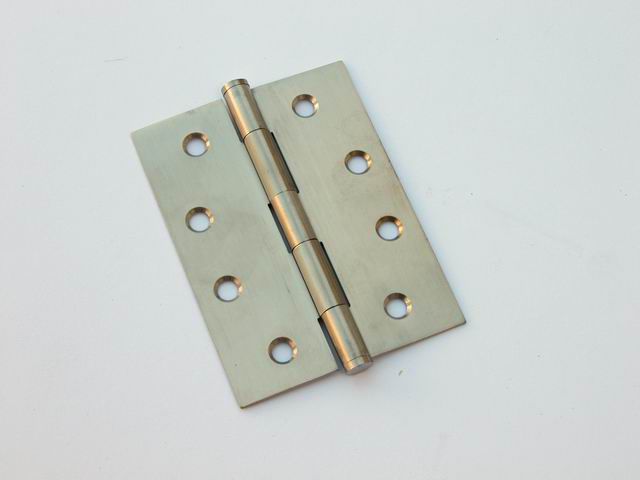

Stainless Steel Butt Hinge

70x50x1.5mm

Available in fixed and loose pin.

Finish
Stainless Steel

Size
50x38x1.2mm
70x50x1.5mm
85x60x2.0mm
100x75x1.5mm

Steel Butt Hinge

85x60x1.6mm

Available in fixed and loose pin.

Finish
Satin Chrome
Polished Chrome
Zinc Plated
Powder Coated
Brass Plated
Florentine Bronze
Bright Seel

Size
25x22x1.0mm
35x28x1.2mm
50x38x1.2mm
70x50x1.6mm
85x60x1.6mm
100x75x1.6mm

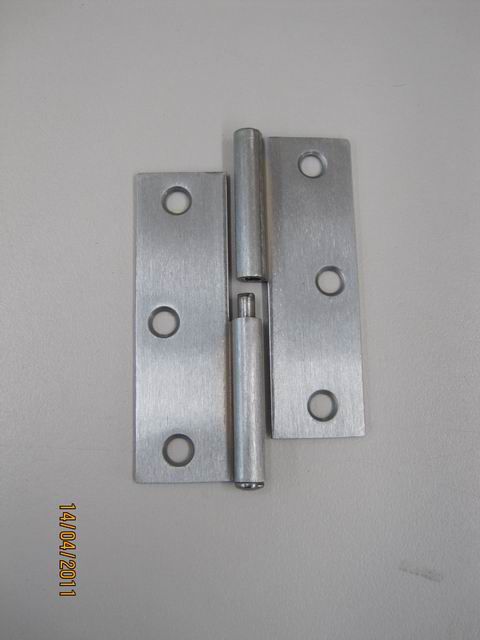

Steel Butt Hinge - Lift Off

85x60x1.6mm

Available in left and right hand.

Finish
Satin Chrome
Polished Chrome
Bright Brass
Zinc Plated

Size
85x60x1.6mm
100x75x1.6mm

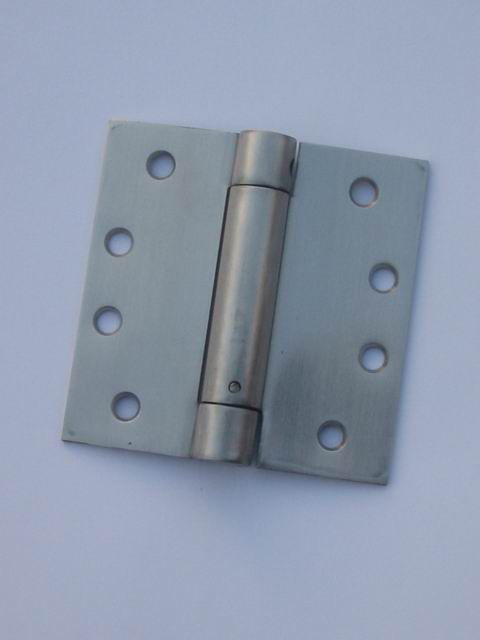

Spring Loaded Hinge




Single Action


Size
4"x4"x2.5mm

Finish
Satin Stainless

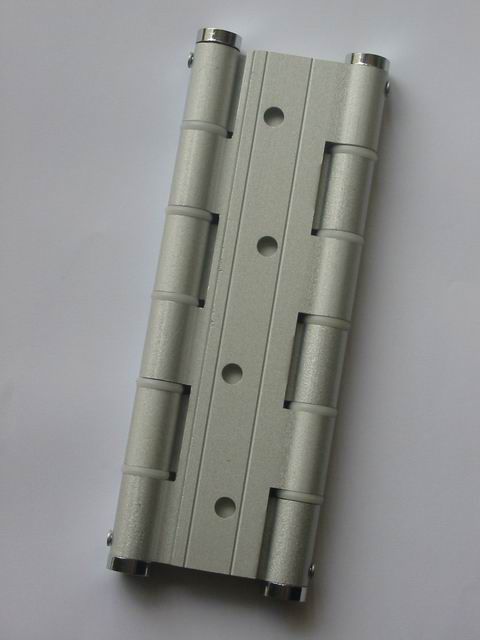

Double Action


Size
180mm

Finish
Aluminium



Steel




Button Tipped - Plain

100x75x2.5mm

Available in fixed and loose pin.

Finish
Satin Chrome
Polished Chrome
Zinc Plated
Powder Coated

Button Tipped - Plain

100x100x2.5mm

Available in fixed and loose pin.

Finish
Satin Chrome
Polished Chrome
Zinc Plated
Powder Coated

Lift Off Hinge

100x75x2.5mm

Finish
Satin Chrome
Polished Chrome



Solid Brass

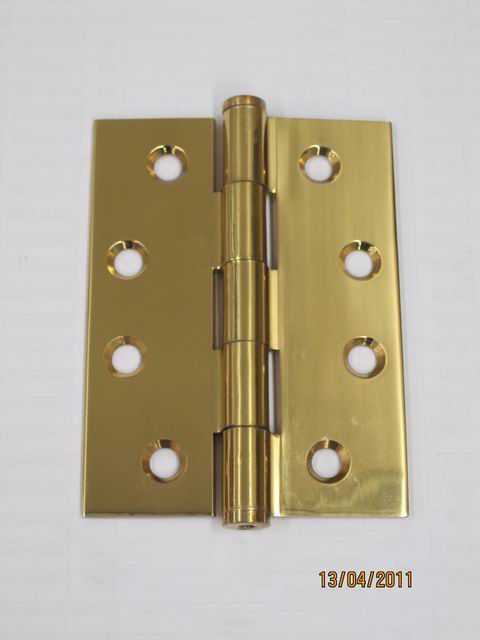

Button Tipped - Plain

100x75x2.5mm

Available in fixed and loose pin.

Finish
Polished Brass

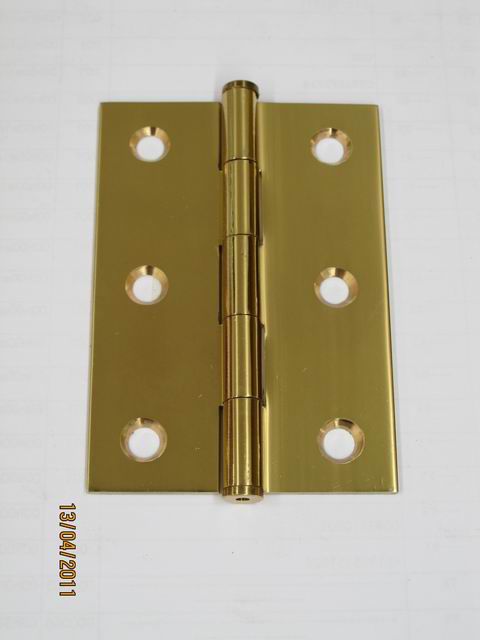

Button Tipped - Plain

85x60x2.0mm

Available in loose pin.

Finish
Polished Brass

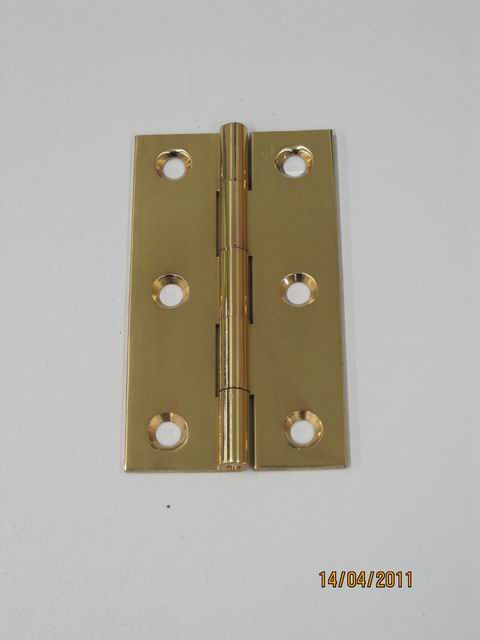

Solid Brass Butt Hinge

89x51x2.0mm

Available in fixed pin.

Finish
Polished Brass
Machine Brass

Size
25x19x1.2mm
38x22x1.4mm
50x32x1.4mm
63x35x1.4mm
76x41x2.0mm
89x51x2.0mm
102x60x2.0mm



Radius & Non Mortise Hinge

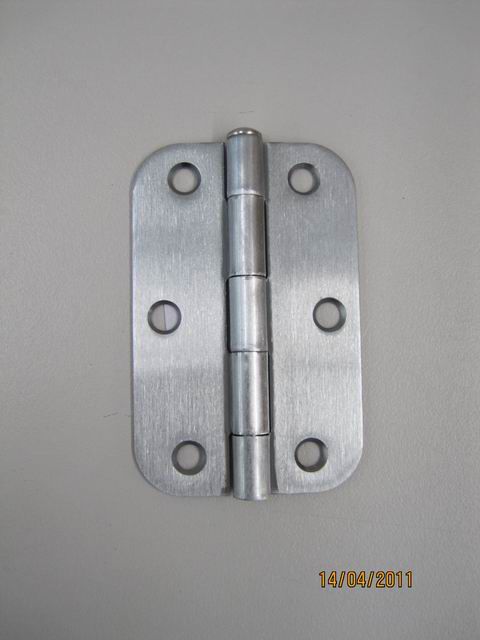

Radius Hinge

89x57x1.6mm

Available in loose pin.

Finish
Satin Chrome
Polished Chrome
Bright Brass
Zinc Plated
Powder Coated

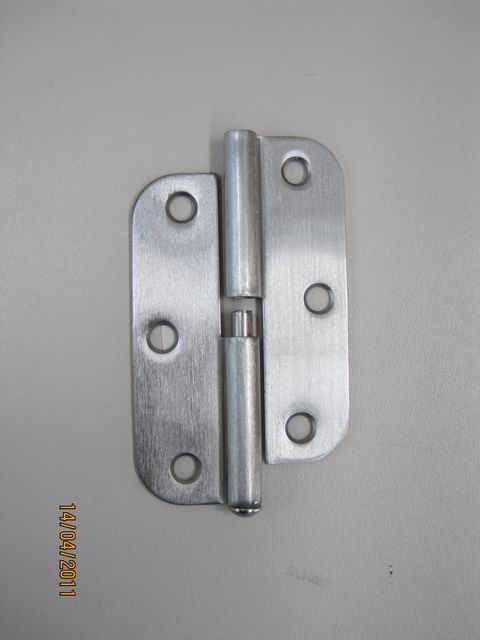

Radius Hinge - Lift Off

89x57x1.6mm

Available in left and right hand.

Finish
Satin Chrome
Polished Chrome
Bright Brass

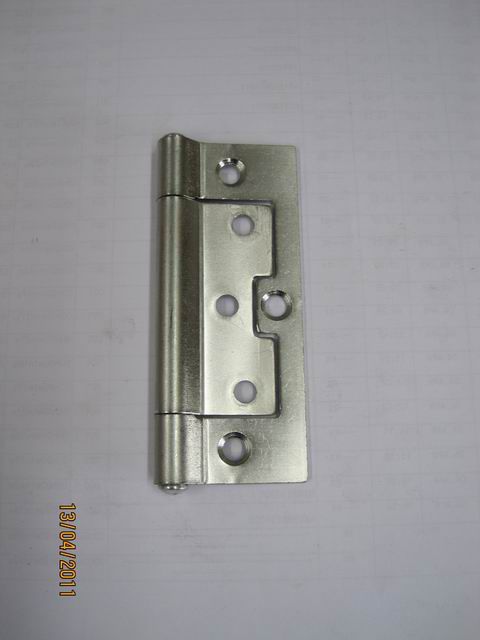

Non Mortise Hinge

100x42x2.0mm

Available in fixed and loose pin.

Finish
Satin Chrome
Polished Chrome
Bright Brass
Zinc Plated
Florentine Bronze

Size
50x23x1.2mm
63x25.4x1.4mm
75x31x1.6mm
89x34x1.8mm
100x42x2.0mm



Wood Screws




Wood Screw


Size

3Gx1/2"(12mm) to suit 25mm,35mm & 38mm butt hinge.

4Gx1/2"(12mm) to suit 50mm, 63mm butt hinge & 50mm non mortise hinge.

5Gx3/4"(20mm) to suit 70mm butt hinge, 63mm & 75mm non mortise hinge.

7Gx3/4"(20mm) & 7Gx1"(25mm)  to suit 76mm brass hinge, 89mm non mortise hinge.

7Gx1"(25mm) to suit 89mm non mortise hinge.

8Gx3/4"(20mm),8Gx1"(25mm) & 8Gx1-1/4"(32mm) to suit 85mm, 100mm butt hinge, 100mm non mortise hinge & 89mm radius hinge.

10Gx3/4 (20mm), 10Gx1-3/4"(32mm) to suit broad butt hinge 100x75x2.5mm & 100x100x2.5mm


Finish
Zinc Plated
Brass Plated
Chrome Plated
Florentine Bronze
Stainless Steel

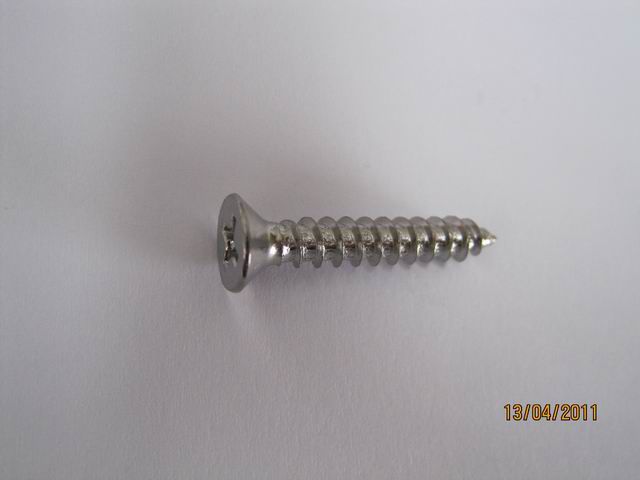

CSK Phillips Head Screws

Countersunk Phillips Head Screws.

Suitable for Worldwide Hardware Hinges

Screw Size: 4G x ½” (12mm)
Finish: BP, SS, ZP.

Will fit 50mm, 63mm butt hinge & 50mm non mortise hinge.



Screw Size: 5G x ¾” (20mm)
Finish: BP, FB, CP, SS, ZP.

Will fit 70mm butt hinge, 63mm & 75mm non mortise hinge.

Screw Size: 6G x 5/8” (16mm)
Finish: CP, BLK.

Will fit radius corner D striker plate & round striker plate.



Screw Size: 7G x ¾” (20mm)
Finish: BP, CP, FB, SS, ZP.

Will fit 76mm brass hinge, 89mm non mortise hinge.



Screw Size: 7G x 1” (25mm)
Finish: BP, CP, SS, ZP.

Will fit 76mm brass hinge, 89mm non mortise hinge.



Screw Size: 8G x ¾” (20mm)
Finish: BP, CP, FB, ZP.

Will fit 85mm, 100mm butt hinge & 89mm radius hinge.



Screw Size: 8G x 1” (25mm)
Finish: BP, BLK, CP, FB, SS, ZP.

Will fit 85, 100mm butt hinge, 100mm non mortise hinge & 89mm radius hinge.

Screw Size: 8G x 1-1/4” (32mm)
Finish: BP, CP, ZP.

Will fit 85mm, 100mm butt hinge.



Screw Size: 10G x 3/4” (20mm)
Finish: BP, CP.

Will fit 100x75x2.5mm & 100x100x2.5mm hinge.



Screw Size: 10G x 1-1/4” (32mm)
Finish: BP, CP, BLK, SS, ZP.

Will fit 100x75x2.5mm & 100x100x2.5mm hinge.

Screw Size: M5x12mm   Finish: BLK, SS, ZP.

Will fit 100x75x2.5mm & 100x100x2.5mm hinge.
